21.45 kW Solar + Battery in West Palm Beach, FL

A 21.45 kW rooftop solar and battery system designed, permitted, and installed by Sprightful for West Palm Beach homeowners. Energized November 2023.

System size

21.45kW

57 modules

Battery

20.16kWh

Enphase IQ Battery 10C

Permit → energize

289days

227d in permitting

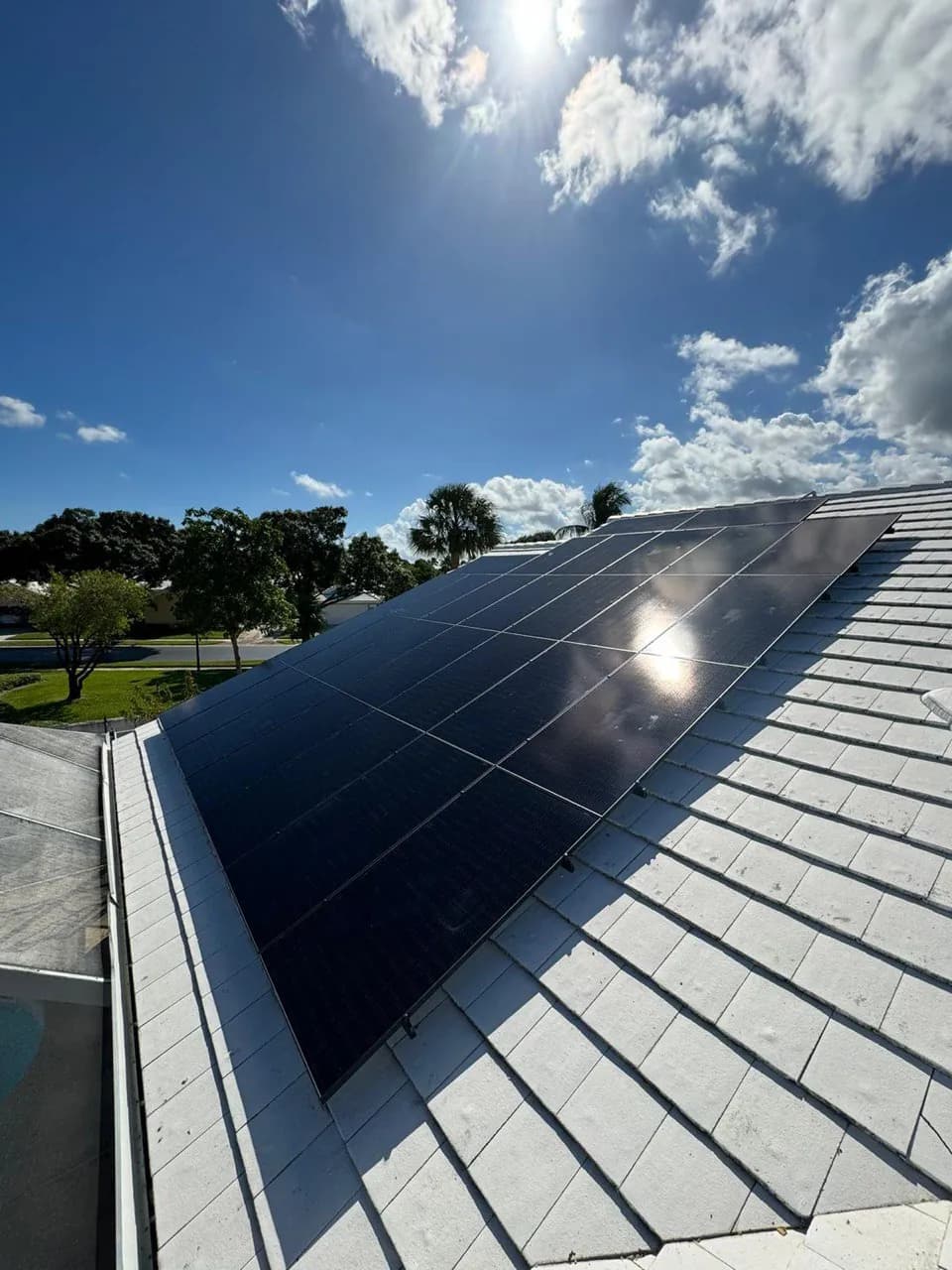

Sprightful Solar 21.45 kW solar + battery system installed on a home in West Palm Beach, Florida

21.45 kW rooftop array in West Palm Beach, FL · 57 modules · standoffs anchored with stainless-steel bolts directly into the roof trusses.

At a glance

Project ledger

CountyPalm Beach County

Permitting authorityWest Palm Beach

EnergizedNovember 2023

Permit → energize289 days

System size21.45 kW

Modules57 panels

InverterEnphase IQ 8+ microinverter

BatteryEnphase IQ Battery 10C (20.16 kWh)

Annual production (est.)32,175 kWh

30-yr lifetime savings (est.)$229,611

Hardware

What was installed, and why.

Modules — 57× panels
CS3N-390MS. Sized to cover the home's 12-month baseline load with a minor buffer for future electrification.
Inverter — Enphase IQ 8+ microinverter
Grid-tied inverter equipment converts rooftop production for home loads and FPL net metering.
Battery — Enphase IQ Battery 10C
20.16 kWh usable. Whole-home backup through grid outages, and time-of-use shifting when utility peak tariffs apply.
Racking — mounting system
Standoffs anchored with stainless-steel bolts directly into the roof trusses

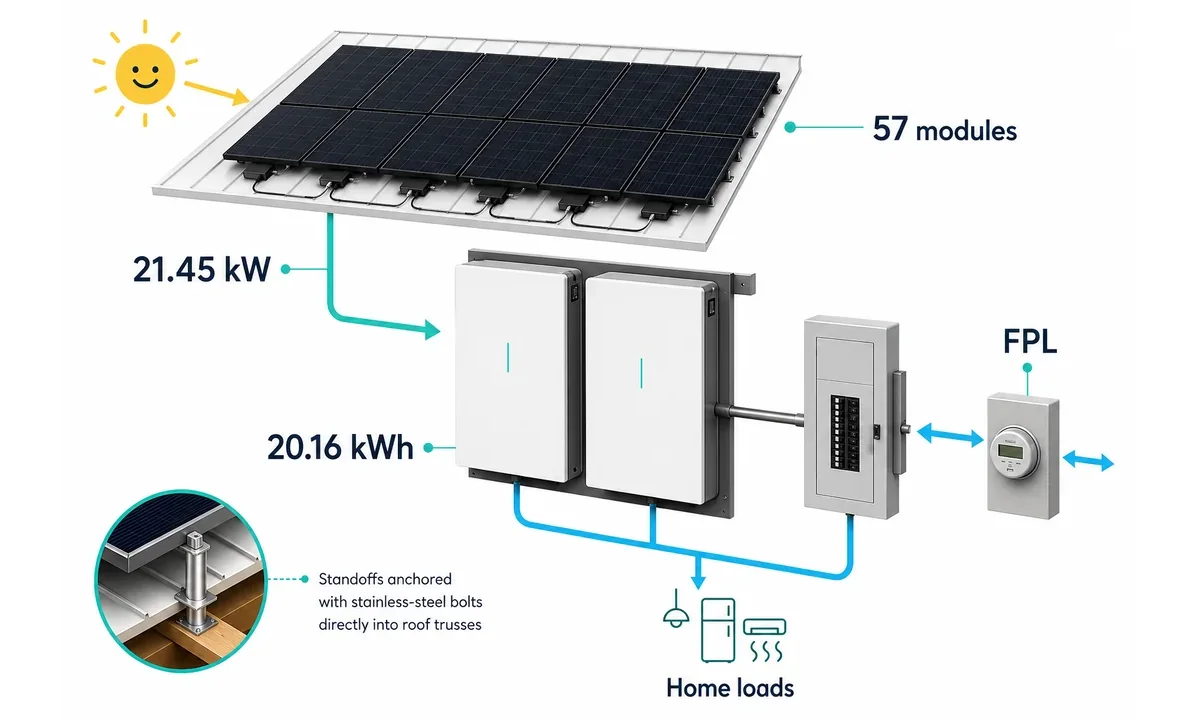

Equipment diagram showing the West Palm Beach solar system hardware and utility connection

Project timeline

How the West Palm Beach project moved from contract to meter.

A dated view of the work: contract, permitting, on-site installation, utility handoff, and any later expansion or battery phases.

Start

Project begins

February 14, 2023Day 0

Milestone

Permits submitted to city

Day 42

Install

Installation begins

November 10, 2023Day 269

Install

Installation completed

Day 273

Milestone

FPL replaces meter

November 30, 2023Day 289

Total span

289 days contract to energized

vs. Florida average

~520 days · ~44% faster

Project notes

About the project

When this West Palm Beach household set out to rein in their FPL bill, they didn't do it in a single leap — they did it the smart way, in two phases. Sprightful first designed a 21.45 kW rooftop array: 57 Canadian Solar 390-watt panels paired with 55 Enphase IQ 8+ microinverters, so every panel is its own independent generator and one shaded panel never drags the rest down. That system went live in November 2023, and the homeowners were exporting energy to FPL within a few weeks of the final install.

In 2025 they came back to us for phase two — two Enphase IQ Battery 10C units, adding roughly 20 kWh of whole-home backup to the existing Enphase stack. Because the original system was already Enphase, the batteries slotted in without replacing any of the 2023 hardware. That's the advantage of a modular platform: you build for today's budget, and you can add resilience later without starting over.

Why it matters

A 30-year financial and environmental decision.

These aren't projections pulled from thin air. FRCC eGRID emissions data, current FPL residential tariff, and modeled production under South Florida irradiance (~1,500 kWh/kW/yr).

32,175

kWh produced annually (estimated)

$229,611

30-year savings vs. staying on grid-only power

379tons

CO₂ offset over lifetime — equivalent to ~6,317 trees planted

Cumulative savings vs. grid-only30-year horizon

Good-faith estimates using FRCC eGRID emissions data, current FPL tariff, and Aurora-modeled production. Actual results vary with shading, weather, and future rate changes.

“Great company — they did amazing work and were patient and thorough throughout the whole process. They made getting solar a breeze. Would definitely recommend them.”

West Palm Beach homeowner·Energysage, Google review

Nearby Sprightful installs.

Each AHJ has its own quirks — permit fees, setback rules, wind-load calcs. Here are similar projects we've run through the same county offices, close to West Palm Beach.

Delray Beach, FL

FAQ

Solar in West Palm Beach, FL.

How long does the solar permit process take in West Palm Beach?

West Palm Beach took 227 days from submittal to approval on this project. Typical range we've seen is 2–8 weeks depending on whether the roof assembly requires a secondary wind-load review.

What size solar system is typical for a West Palm Beach home?

Most West Palm Beach homeowners land between 8–16 kW — sized to offset 90–100% of their FPL bill. This project is 21.45 kW, on the larger end.

Does my HOA need to approve it?

Florida's Solar Rights Act (§163.04) prevents HOAs from outright banning rooftop solar. They can make reasonable aesthetic requests — we handle the HOA submittal directly and have a 100% approval rate to date.

What rebates and incentives are available in Palm Beach County?

The 30% federal Investment Tax Credit (ITC) is the primary incentive — Florida has no state-level solar rebate. There's also no property tax increase for the added home value (Florida exemption), and no sales tax on the equipment.
